JUMBO VAC AIR INTERNAL QUAD WET
JUMBO VAC AIR INTERNAL QUAD WET
Couldn't load pickup availability
Jumbo Industrial Vacuum

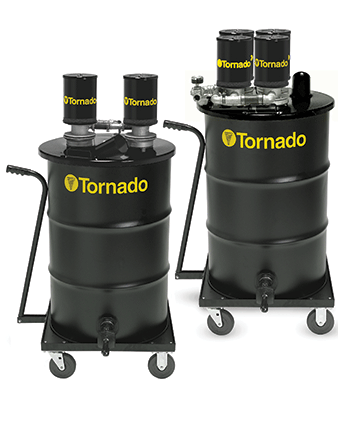

Powered by compressed air, Tornado's internal filtered Wet Jumbo Air Vacuum creates exceptional water lift substantially beyond your typical vacuum. These machines have been developed specifically to cover industrial rapid high-volume recovery environments. Our air Jumbo's work exceedingly well handling the following maintenance challenges: Heavy oil, machine oil, printer's and other inks, sludge and most all other industrial wet pick up problems. Patented venturi powerheads are fitted on a rolled top 55-gallon drum, all of which sits on a heavy-duty four-wheel steel dolly for easy transport. Order in either dual head or quad head configurations. Specific air line and air compressor HP requirements apply as detailed on our product brochure.
Features:

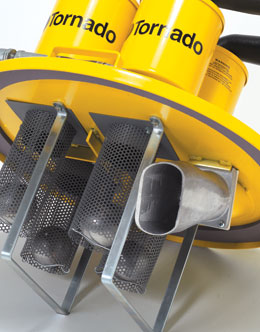

- Patented venturi powerheads

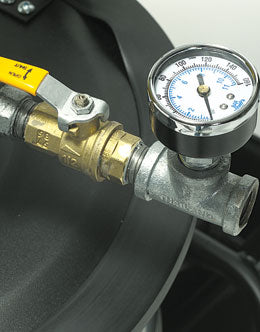

- Industrial drain valve for convenient emptying
- Liquid shut-off floats
- Work exceedingly well handling heavy oil, machine oil, printer's and other inks

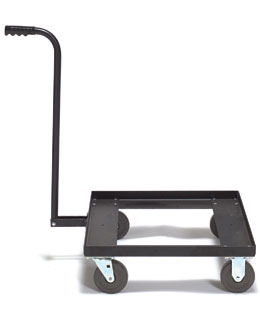

- Sits on a heavy duty four wheel steel dolly for easy transport
Specifications:
| Specification | Dual Air Wet-Only Jumbo (Model 95961) | Quad Air Wet-Only Jumbo (Model 98450) |
|---|---|---|
| Water Lift | 242 in. | 200 in. |
| CFM (2 in. Orifice) | 160 | 258 |
| Tank Capacity | 55 gal | 55 gal |
| Venturi Powerheads | Two | Four |
| Horizontal Reach | 50 ft | 100 ft |
| Vertical Lift | 25 ft | 50 ft |
Brochures & Manuals:
|
|
|
|
